Pitlock Locking Thru Axles

In recent years, thru axles have established themselves as the dominant standard for mountain bikes, and are increasingly becoming relevant in other categories as well. This is especially true for higher-end models, where the thicker axle provides precision steering and increased stiffness. However, there are still very few standards between through-axle manufacturers, and determining the size you need may be intimidating if you are unfamiliar with the construction of your bike. Please contact us if you have any sizing questions. Below are the Pitlock thru axles we have available for sale, which align with the sizing specifications outlined in this table:

All measurements are in mm.

Set Name Diameter (a) Total Length (b) Thread Length (c) Thread Pitch
Set 17 (standard) 15 148 15 M15 x 1.5
Set 17 (boost) 15 158 15 M15 x 1.5
Set 18 (standard) 15 146 15 M14 x 1.5
Set 18 (boost) 15 156 15 M14 x 1.5
Set 19 15 133.2 15 M15 x 1.5
Set 20 (standard) 12 172 20 M12 x 1.75
Set 20 (boost) 12 178 20 M12 x 1.75
Set 21 15 140 N/A N/A
Set 22 (standard) 15 120 N/A N/A
Set 22 (boost) 15 150 N/A N/A
Set 23 (standard) 12 125 15 M12 x 1.5
Set 23 (boost) 12 120 15 M12 x 1.5
Set 24 (standard) 12 170 20 M12 x 1.5
Set 24 (boost) 12 175 20 M12 x 1.5
Set 25 15 125 15 M15 x 1.5
Set 26 (standard) 12 165 20 M12 x 1.0
Set 26 (boost) 12 170 20 M12 x 1.0
Set 26 (boost long) 12 175 20 M12 x 1.0
Set 27 12 120 15 M12 x 1.0

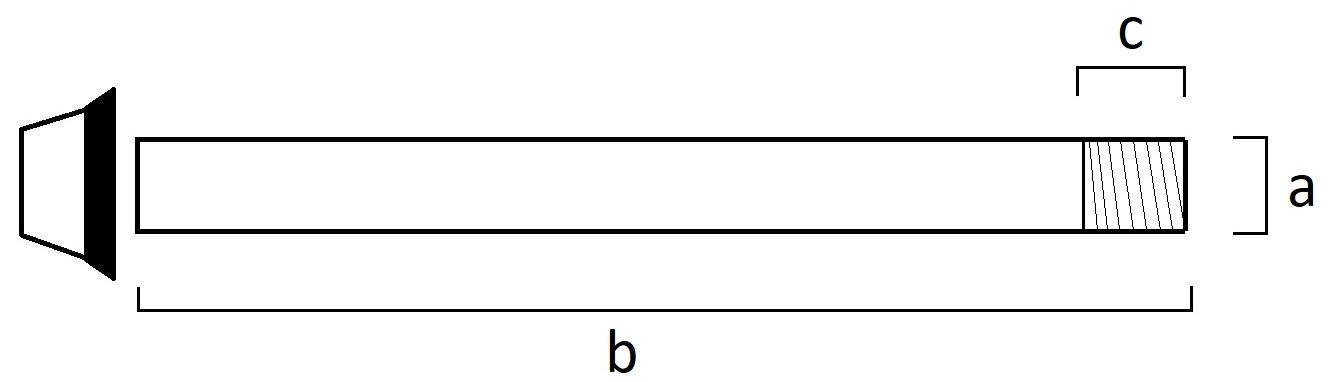

through axle measurement guide
